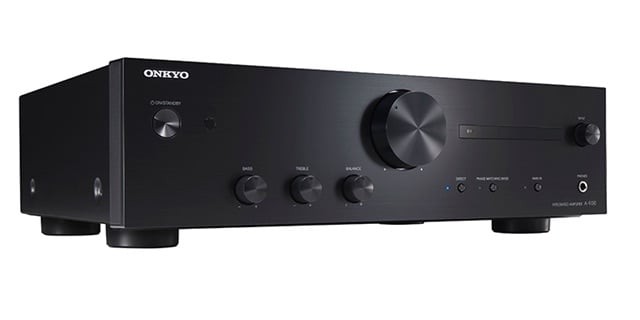

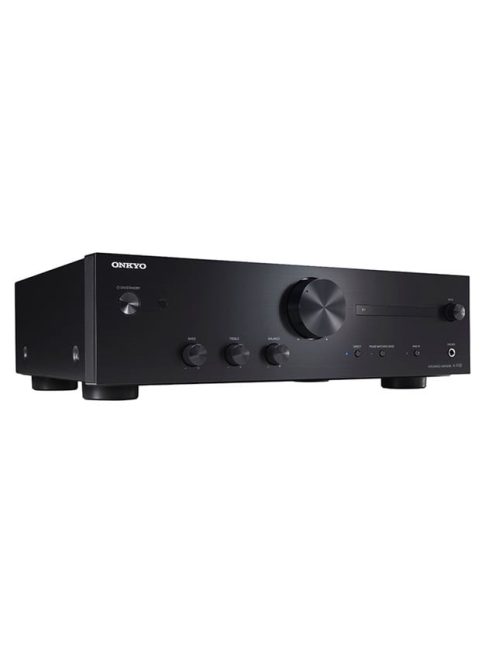

Onkyo A-9130

Highlights

• 60 W + 60 W high-current amplification

• WRAT (Wide Range Amplification Technology)

• Direct Mode for source-authentic audio reproduction

• Phase Matching Bass Boost

• Custom-made high-current EI transformer and two 10,000 µF capacitors

• Wolfson® WM8718 DAC

• MM phono input, 5 x RCA, and 2 x digital audio inputs

• New fine display for easy source selection

Amplification features

• 60 W + 60 W  (4 Ω, 20 Hz–20 kHz, 0.5% THD, 2-ch driven, IEC)

• WRAT (Wide Range Amplifier Technology)

• Customized high-current EI transformer

• Two large custom-fabricated 10,000 µF audio-grade main capacitors

• Optimum Gain Volume Circuitry for clear low-volume playback

• Rigid anti-resonant 1.6 mm metal chassis

• 4 Ω speaker-driving capability

• High-quality Wolfson® WM8718 192 kHz/24-bit  D/A converter

• Phase Matching Bass Boost

• Power Amp Direct main input function

• Direct Mode for source-authentic audio reproduction

• Thick detachable IEC-compliant power cable

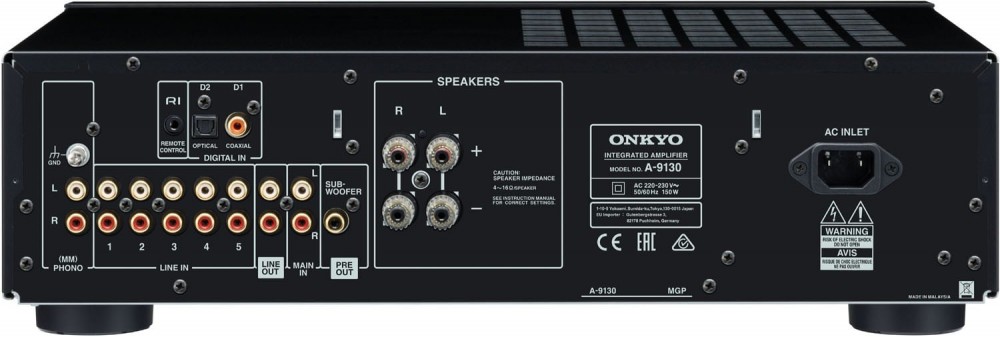

Connection features

• 5 gold-plated analog RCA inputs

• 2 digital audio inputs  (1 coaxial, 1 optical, 192 kHz/24-bit-capable)

• 1 phono input with discrete MM phono equalizer

• 1 analog RCA line-level output

• Direct main power amp input

• Subwoofer pre-out

• High-quality non-magnetic speaker posts with clear knobs

• Silver-plated 6.35 mm headphone jack

• RI (Remote Interactive) input

Additional features

• Fine display shows active input

• Aluminum volume control knob (motorized)

• Independent bass and treble tone controls and  balance control

• Easy-to-use knobs for smooth operation without  a remote

• RI (Remote Interactive) input enables connection of a supported component for integrated control with one remote controller

• Auto Power Standby
