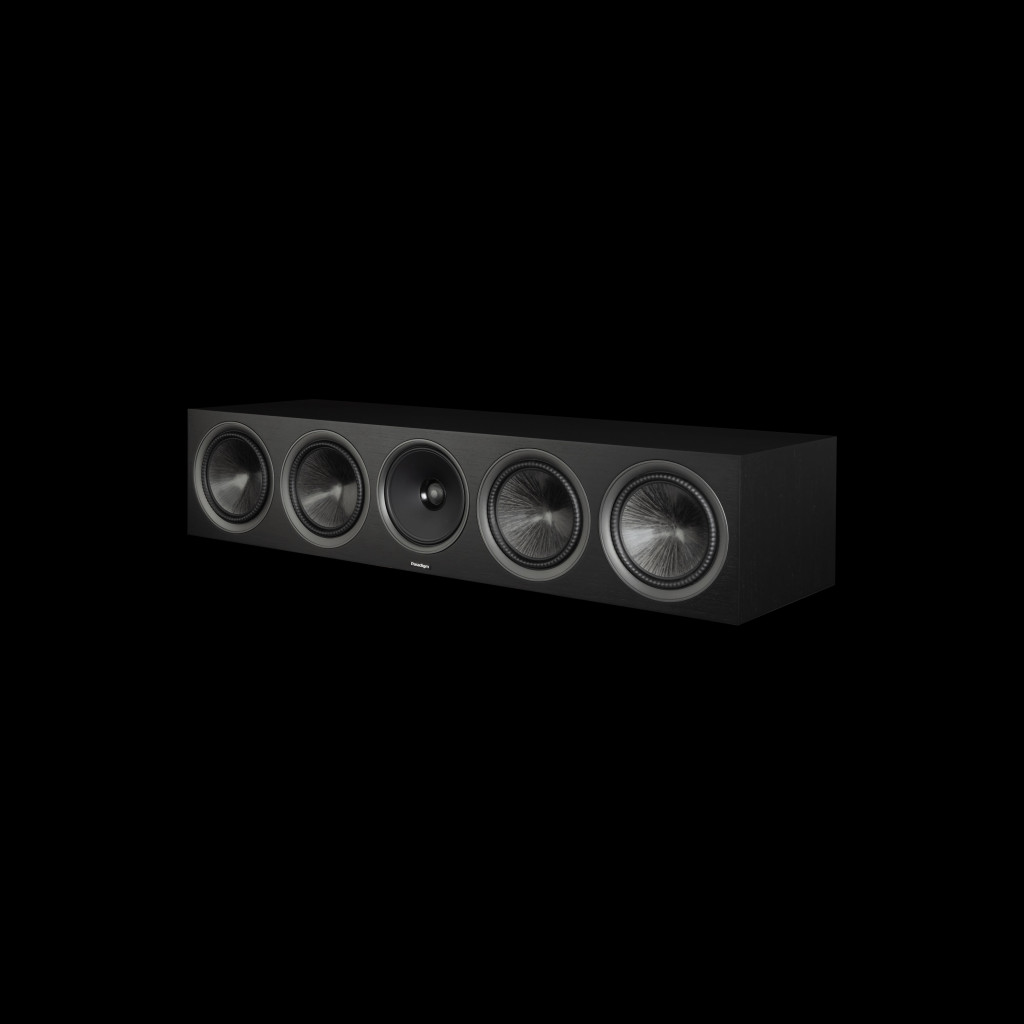

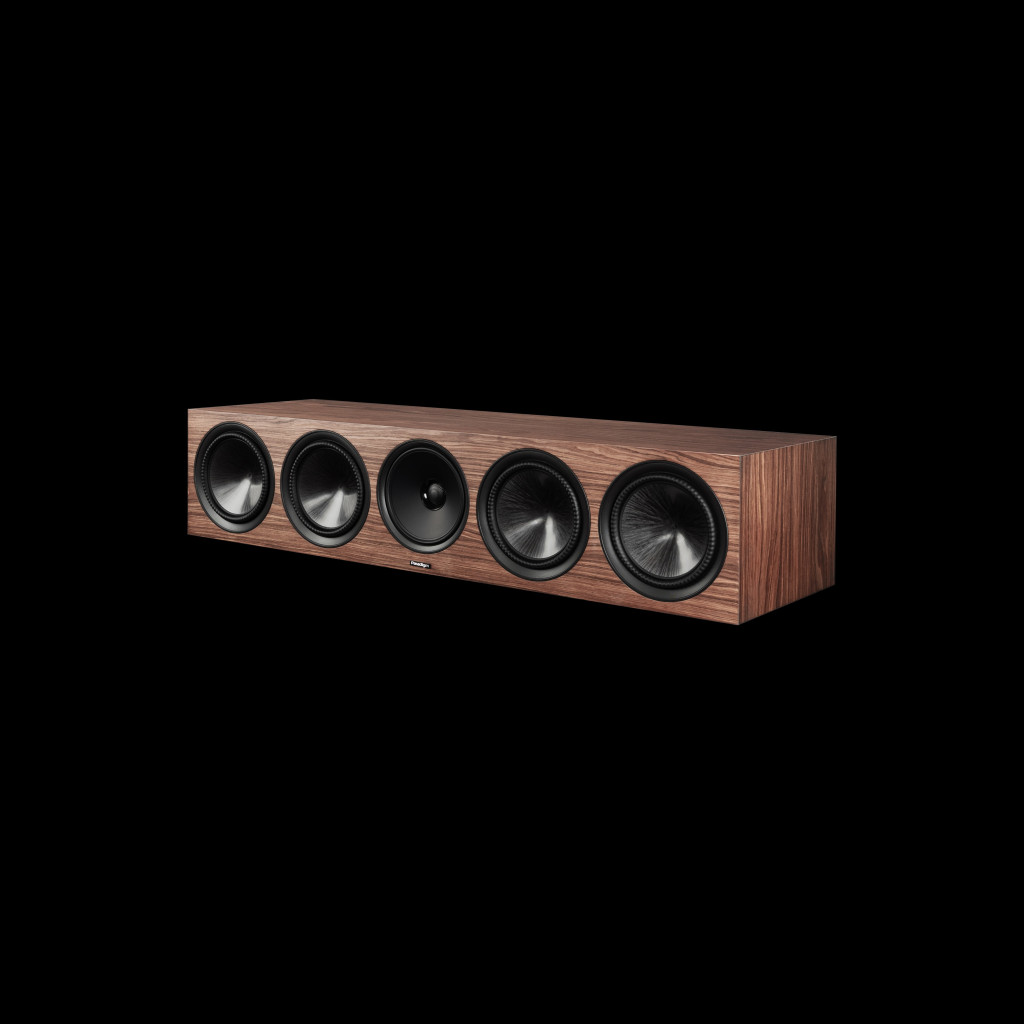

Paradigm Premier V2 620C

General Design

• 4-driver, 2-passive radiator, 3-way sealed center channel speaker
• 2-way bookshelf speaker with 2 drivers, bass-reflex loading
• Integrated technologies: AL-MAC, AL-MAG, OSW™, PPA
• 2nd-order electro-acoustic crossover

Drivers

• Tweeter
  • 25 mm AL-MAC ceramic dome
  • Oblate Spherical Waveguide (OSW)
  • Perforated Phase-Aligning lens (PPA)
  • Damped and cooled with ferrofluid
• Midrange driver
  • Coaxial 6” (152mm) AL-MAG™ Cone
  • 2” high-temp multi-layered voice coil with Apical™ former
  • Patented Dual-Sync™ Continuous Flux Motor
• Bass driver
  • Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Cone
  • Gen3 Active Ridge Technology (ART™) with Vertical Mounting System
  • 1” hightemp multi-layered voice coil with ventilated Apical™ former
• Passive radiator
  • Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Passive Raditators
  • Gen3 Active Ridge Technology (ART™) and Vertical Mounting System

Acoustic Performance

• On-axis frequency response: ±3 dB from 49 Hz to 23 kHz
• 30° off-axis frequency response: ±3 dB from 49 Hz to 20 kHz
• Low-frequency extension: 33 Hz (DIN)
• Sensitivity
  • In-room: 93 dB
  • Anechoic: 90 dB

Electrical Characteristics

• Recommended amplifier power: 15 to 180 W
• Maximum input power: 120 W
• Impedance: compatible with 8 ohms

Dimensions and Weight

• Dimensions (H × W × D): 22.6 cm x 104.1 cm x 34.8 cm
• Weight per unit: 21.8 kg
• Available finishes: Gloss Black, Black Walnut, Walnut
